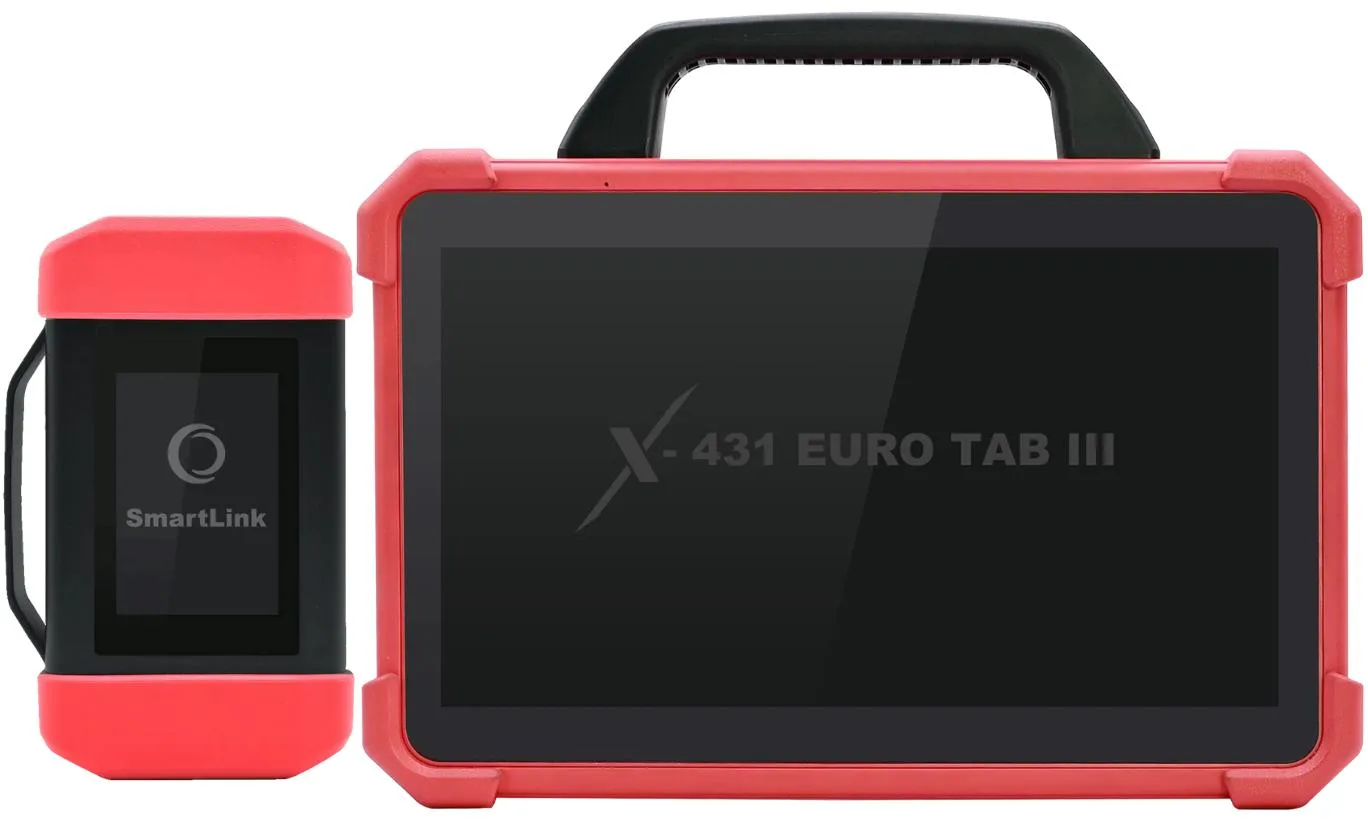

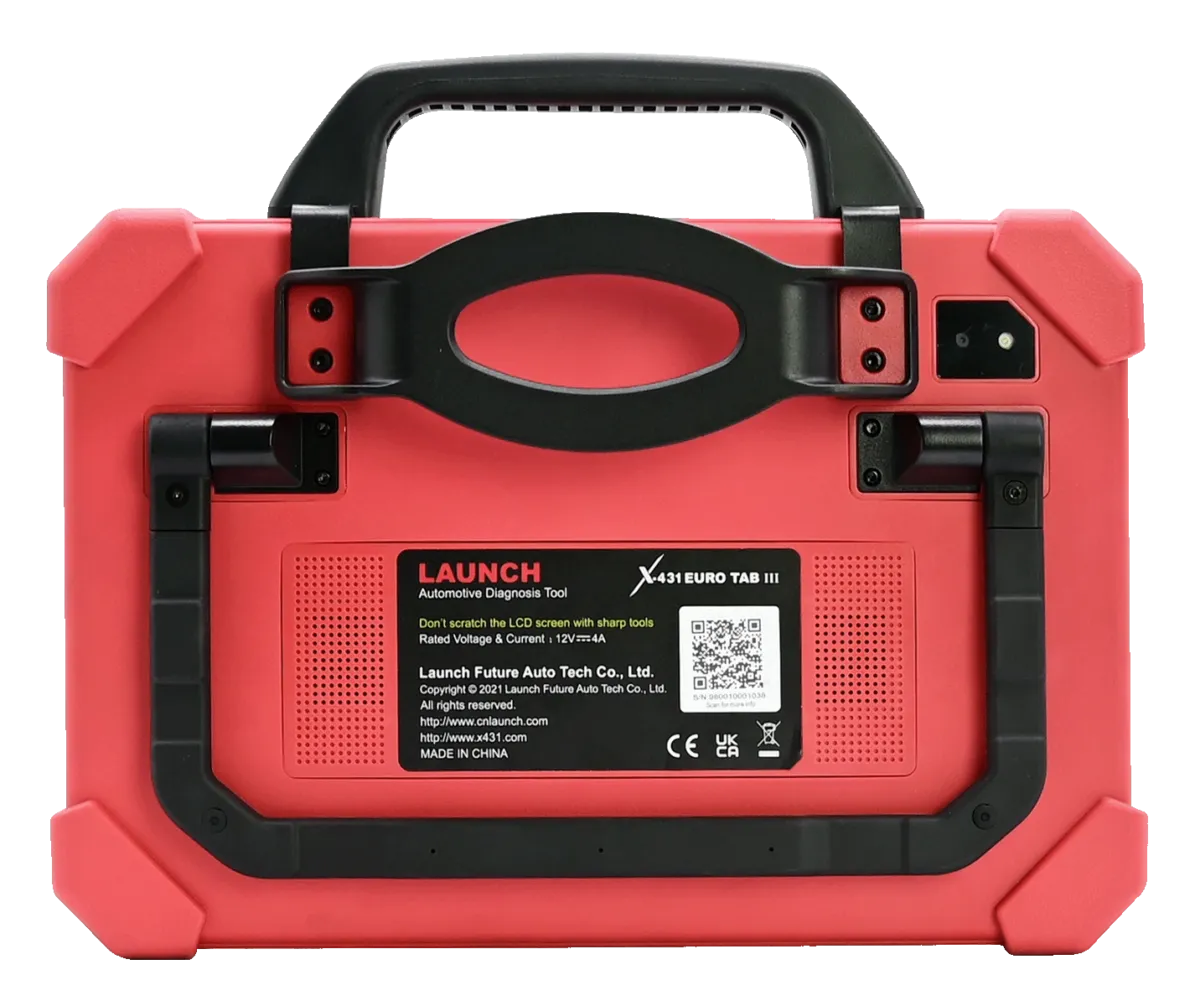

Launch X-431 Euro Tab III

Key features of the X-431 Euro Tab III:

• Support for the latest protocols – compatible with DoIP, J2534, and RP-1210 protocols, enabling service for multiple brands and vehicle types.
• Advanced diagnostic functions – built-in oscilloscope, HV battery status analysis, and TPMS sensor support.
• Integrated SmartLink C remote diagnostics – the ability to perform diagnostics remotely, also on commercial and heavy-duty vehicles.
• Large and clear 13.3″ display – Full HD 1920×1080 resolution ensures comfortable and clear work.
• Haynes PRO Electronics technical database – extensive wiring diagrams, service information, diagnostic data, and assistance in identifying and solving faults.
• New Cloud-Print – secure access and archiving of DTC/ADAS reports from anywhere.
• Intelligent Diagnostic Assistant (IDA) – user guide with tips and access to the instruction database.
• Extended CarSet Pro database – detailed connection diagrams and component data supporting diagnostics.
• EV tool package – functions dedicated to electric vehicles, including high-voltage battery diagnostics.
• Hardware comes from official Launch Europe distribution.

Technical specifications:

• Operating System: Android 9.0
• Processor: Octa-core 2.0 GHz
• RAM: 8 GB
• Storage: 256 GB
• Display: 13.3″ IPS
• Resolution: 1920×1080, 16:9
• Battery: 9360 mAh, 7.6 V / 71.1 Wh
• WiFi: 2.4 GHz and 5 GHz
• Ports: USB Type-C; USB Type-A; HDMI; DC
• Front Camera: 8 MP
• Rear Camera: 13 MP
• Dimensions: 353 x 236 x 71 mm

Wireless SmartLink C Module:

Functions:

• Fast local diagnostics via Bluetooth
• Remote diagnostics (LAUNCH SRDs) via Wi-Fi or Ethernet cable
• DoIP compatibility
• Pass-Thru mode

Technical Specifications:

• Display: 3.97-inch, monochrome
• Resolution: 320 × 480
• Operating Voltage: DC 9–36 V
• Communication: Ethernet / Wi-Fi
• Wi-Fi: 5G
• USB: USB 2.0 Type-B
• Internal Storage: 8 GB
• RAM: 256 MB
• Dimensions: 204 × 110 × 45 mm

40 Service Functions:

• Electric Parking Brake
• Oil Change Service
• Steering Angle Sensor Calibration
• Battery Retraining
• Brake Bleeding System
• Diesel Particle Filter
• Injector Coding
• Retraining Throttle Valve
• Tyre Pressure Monitoring System
• Crankshaft Position Sensor
• Adaptive Driving Light
• Transmission Adaptive Value Reset
• Sunroof
• Start-Stop Reset
• Gas Particulate Filter Regeneration
• Immobiliser
• Turbo Matching
• FRM-Reset
• ECU Reset
• Window Regulator Reset
• Gateway Module Data Calibration
• High Voltage Battery Diagnostic
• Exhaust Gas Recirculation
• Drivers Seat Memory
• Transport Mode
• Intelligent Cruise Control System
• Engine Power Balance Monitoring
• AdBlue Reset
• Clutch Matching
• Immobiliser Reset
• Coolant Venting
• Air/Fuel Reset
• Chassis Calibration
• Rain Light Sensor
• Nitrogen Oxid Sensor Reset
• A/C System Relearn
• Tyre Diameter Reset
• Immo PROG
• Menu Language
• And many more…

The kit includes:

• Launch X-431 Euro Tab III

• VCI SmartLink C diagnostic module
• DBScar, diagnostic connector BENZ-38
• DBScar, diagnostic connector BENZ-14
• DBScar, diagnostic connector BMW-20
• HDMI cable
• OBD I adapter
• Double clamp power cable
• Cigarette lighter cable
• USB Type-A to USB Type-C cable
• USB Type-A to USB Type-B cable
• SmartLink C connection cable
• LAN cable
• Power adapter
• AC250V fuse
