Autel MaxiIM IM608 is the most advanced and unique all-in-one key programming and diagnostic tool that combines advanced key programming, diagnostics for all systems, and services in a single 10.1-inch touchscreen tablet running Android. It is equipped with the XP400 key programmer and the MaxiFlash ECU programmer to provide full coverage for IMMO functions and programming. With the ability to quickly diagnose all modules of most makes and models available on the market, the IM608 offers all special functions. It is an unprecedented key programming and diagnostic tool you’ve always wanted.
Autel MaxiIM IM608 PRO XP400PRO + G-BOX v2 + IMPKA + APB112
Original price was: 18,797.00zł.17,999.00złCurrent price is: 17,999.00zł.
Original price was: 15,282.11zł.14,633.33złCurrent price is: 14,633.33zł. netto(without VAT)
Dostępny w 1 dzień / Avaliable in 1 day
Dostępny w 1 dzień / Avaliable in 1 day
Description
Autel MaxiIM IM608 PRO XP400PRO + G-BOX v2 + IMPKA + APB112
A promotional set consisting of the most recommended accessories for the MaxiIM IM608 PRO:
- Autel MaxiIM IM608 PRO
- AUTEL G-BOX v2 Mercedes All-Key-Lost
- AUTEL MaxiIM IMKPA Adapter Kit
- Autel APB112 Smart Key Emulator
MaxiIM IM608 PRO is the most advanced and unique key programming and diagnostic tool in one. The device combines advanced key programming, diagnostics for all electronic systems and service functions in one 10.1-inch Android touchscreen tablet. The tester is equipped with the new XP400 PRO key programmer and JVCI J2534 to provide full support for IMMO functions. Along with the ability to quickly diagnose all modules of most makes and models on the market, the IM608 provides special features. It is the unprecedented key programming and diagnostic tool you have ever needed.
2 year’s of free upgrade !
The most important features of the Autel MaxiIM IM608 PRO
- Extremely powerful Cortex A7 + A15 six-core processor
- 10.1 inch LED capacitive touchscreen with 1920 x 1200 resolution
- Internal reliable 64GB built-in memory for better performance
- Built-in 8-megapixel rear camera with autofocus and flashlight
- Wi-Fi 802.11 a / b / g / n / ac to access your favorite internet resources
- Open source Android operating system for fast startup and multitasking
- Efficient combination of advanced key programming / all systems diagnostics / advanced maintenance services
- Professional key programming equipped with XP400 PRO and JVCI J2534 key programmer for full Immo support

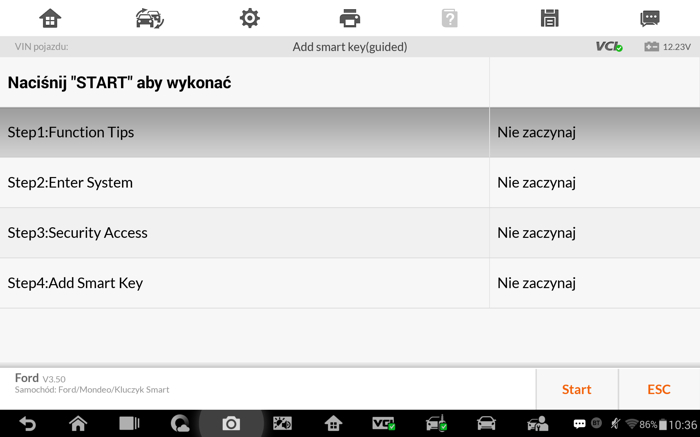

- Smart mode for guided and automated key learning
- Expert mode for advanced key learning

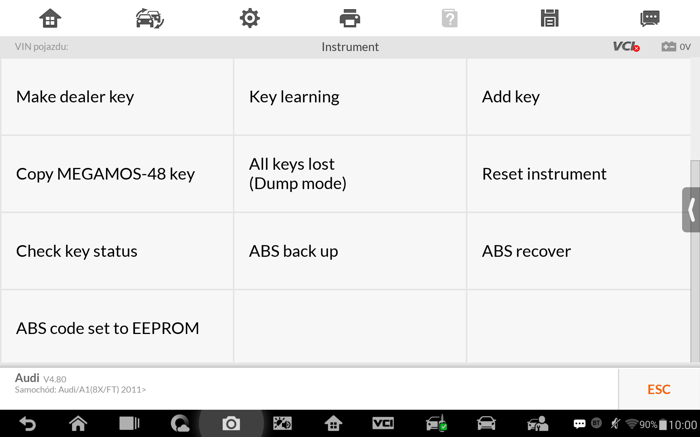

- Read PIN / CS (whole key lost), generate key, key learning, remote learning
- IMMO ECU Reset / Adapt, Refresh / Coding

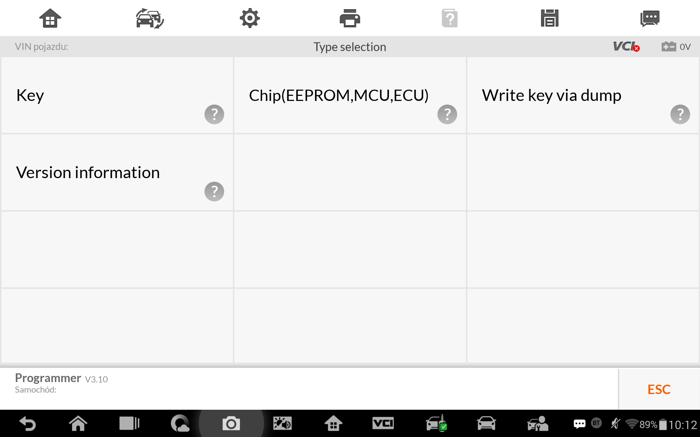

- Read / Write Transponder Data, ECU / MCU / EEPROM Data (Ex. 9S12 Encryption Chip), IC Card, Remote Frequency Detection
- Efficient OE level diagnostics for more than 80 makes and models in the USA, Asia and Europe
- Full capabilities for codes, live data, active tests, ECU information, adaptation, matching, coding etc.

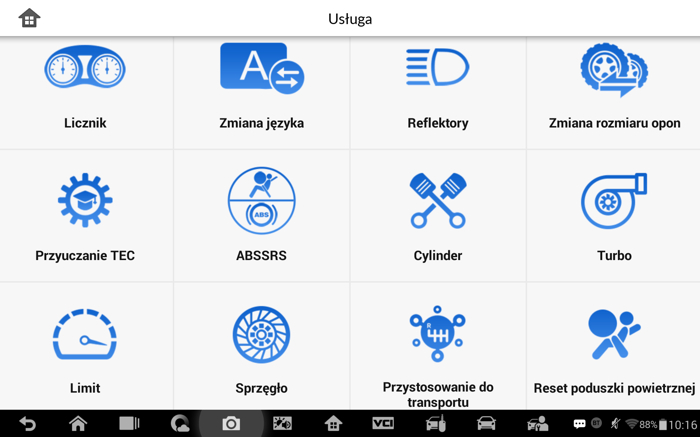

- Service functions, EPB, DPF, SAS, oil reset, BMS, etc.
Diagnostic functions Autel MaxiIM IM608 PRO:
- Diagnosis of all electronic systems of the vehicle (K and CAN lines), including: Engine, ABS, Airbag, DPF, SAS, EPB, air conditioning, automatic transmission, comfort modules, etc.
- Information about the ECU

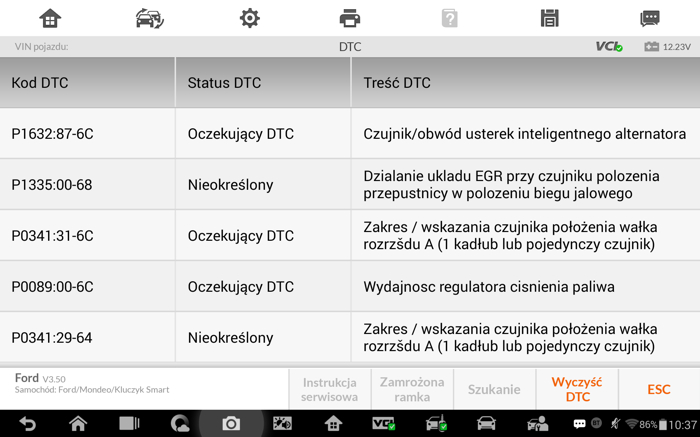

- Reading error codes
- Erasing error codes
- Full support of current parameters during Live Data operation
- Adaptations
- Coding
- Actuator tests
- Basic settings
- Deletion of Oil Service inspections

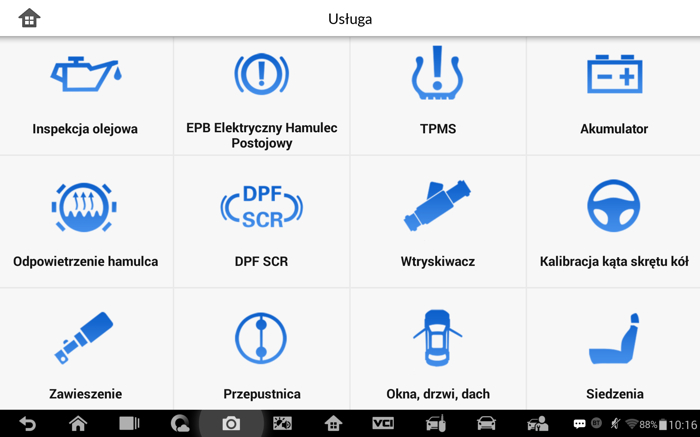

- Service functions such as: Handling the parking brake EPB (Retracting the calipers to replace the brake pads), Service DPF (diesel particulate filter), SAS operation, BMS operation, Throttle adaptation

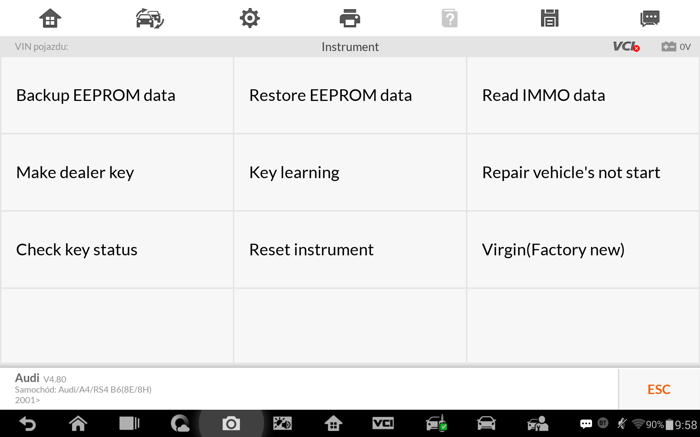

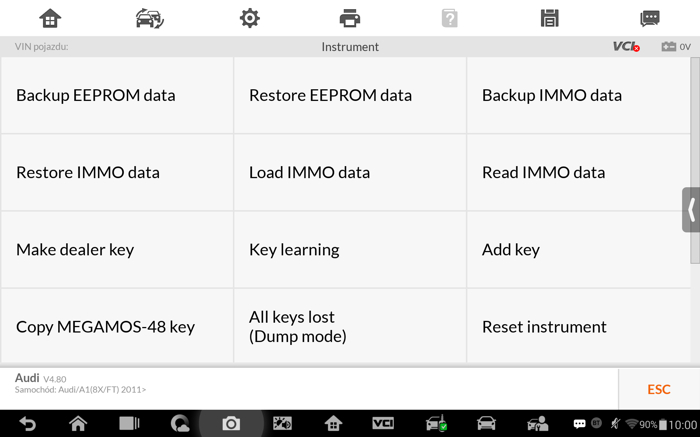

IMMO functions:
- Professional key programming via XP400 programmer and MaxiFlash ECU programmer for full Immo support
- Smart mode for guided and automated key learning
- Expert mode for advanced key learning
- Read PIN / CS (whole key lost), generate key, key learning, remote learning
- IMMO ECU Reset / Adapt, Refresh / Coding
- Read / Write Transponder Data, ECU / MCU / EEPROM Data (Ex. 9S12 Encryption Chip), IC Card, Remote Frequency Detection
Support for almost all vehicle control modules:
- Engine
- ABS braking system
- Airbags
- Automatic transmission
- Comfort module
- Brake electronics
- Traction control ESP/ASR/EBD
- Tire Pressure Monitoring System (TPMS)
- Air conditioning
- Power steering
- Dashboard
- Navigation
- Audio system
- Central locking
- Anti-theft system
- Lighting electronics
- 4×4 drive
- Seat memory
- Door electronics
- Navigation
- Parking assistance
- Lane-keeping assist
- Rearview camera
- Cruise control
- And many more… (diagnostic tool!!!)
AUTEL G-BOX v2 Mercedes All-Key-Lost
Compatible only with Autel devices (IM608, IM508 with XP400)
Autel G-Box v2 is designed for use in Mercedes-Benz vehicles with DAS3 CAN EIS/EZS in AKL. It helps reduce the time to read ECU data from W204 and W207 EIS by over 85%.
AUTEL G-BOX v2 Mercedes All-Key-Lost Features:
– Mercedes Benz all lost keys, faster password calculation
– Used with IM608 or IM508 with XP400
– Used for faster data reading from Mercedes ECU and EIS password calculation
– Mercedes DAS3 CAN EIS/EZS all lost keys
– Reduced time to read W204 and W207 EIS ECU data by over 85%
– No need to remove and reinsert the key for W221 and W164 models after 2009
– Read and write BMW DME / DDE ISN in boot mode
– Also compatible with Auro IM600 and Auro IM100 with XP400
– Fast Mode of Benz key adaption when all keys are lost – on bench
– Fast Mode of Benz key adaption when all keys are lost – on vehicle
– Gateway function replacement

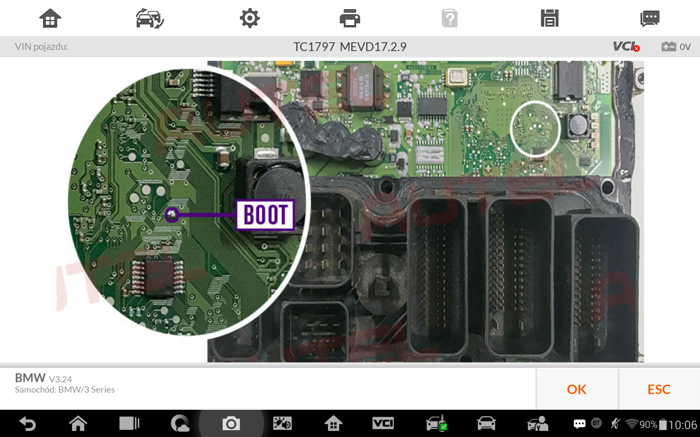

– Bosch engine reading – Boot method
– Bosch engine reading – Bench method
Kit contents:
- Autel G-BOX2
- DB15 cable
- K-line cable
- Fuse cable
- 2 pcs x fuse (5A)
- 2 pcs x clamp cable
- OBDII extension
AUTEL MaxiIM IMKPA Adapter Kit
MKPA is a key programming adapter kit, compatible with XP400Pro key and chip programmer. Includes 12 adapters for XP400Pro to read / write / erase Mercedes Benz ESL_W209 / W906 data, Mercedes Benz NEC key learning, BMW EWS3 key learning and. Volkswagen / AUDI / BMW / Benz key unlocking. Compatible with IM608 and IM508 with XP400Pro.
– Includes 12 adapters, compatible with XP400Pro
– Enables read / write / delete of Mercedes Benz ESL_W209 / W906 data
– Enables learning of Mercedes Benz OE NEC keys
– Enables learning of BMW EWS3 keysUnlocks Volkswagen / AUDI / BMW / Mercedes Benz keys
– Compatible with IM608 and IM508 tablets with XP400Pro
Kit contents:
-
APB113
-
APB114
-
APB115
-
APB118
-
APB119
-
APB120
-
APB121
-
APB122
-
APB123
-
APB126
-
APB127
-
APB128
-
Storage case
Autel APB112 Smart Key Emulator
The Autel APB112 Smart Key Emulator is designed to collect data sent from the ignition coil to identify issues with the ignition coil and decode data from the vehicle’s key chip. It can also emulate the vehicle’s key chip.
Device Features:
- Autel APB112 Smart Key Emulator
- Supports 46, collects 4D data
- Supports 46 smart key password calculations
- Supports 46 chip emulations
- Supports smart key emulation for Toyota 4D (94/D4, 98)
- Supports smart key emulation for Toyota H (88/A8, A9, 30)
The APB112 will perform:
- Smart key emulator
- Collecting 46, 4D data
- Calculating smart key password
- Simulating 46 chip
- Smart key simulation for Toyota 4D (94/D4, 98)
- Smart key simulation for Toyota H (88/A8, A9, 39)
- Collect data from the ignition coil
- Identify ignition coil issues
- Decode vehicle key chip data
- Simulate vehicle key chip (e.g., 4D chip)
- Smart key for Toyota/Lexus all lost keys
- Decode chip (Hyundai 46)
Kit contents:
- AUTEL APB112 Smart Key Emulator
- USB cable
- Quick user manual
Technical data Autel MaxiIM IM608 PRO:
| Operating system | AndroidTM 4.4.2, KitKat |
| Processor | Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) |
| Memory | 2GB RAM & 64GB On-board Memory |
| Display | 10.1-inch LED capacitive touch screen with 1920×1200 resolution |
| Communication | Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI |
| Camera | 8.0 Mexgapixel, AF with Flashlight |
| Audio | Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack |
| Sensors | Gravity accelerometer, Ambient Light Sensor (ALS) |
| Power and battery | 15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
| Input voltage | 12 V (9-24 V) |
| Power cosumption | 6.5 W |
| Working temperature | -0 to 50 ℃ |
| Storage temperature | -20 to 60 ℃ |
| Case |
Strong plastic housing with rubber protection |
| Dimmensions | 300 mm x 220 mm x 50mm |
| Weight | NW: 1.42 kg, MaxiSys GW: 8.655 kg |
| Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
Autel MaxiIM IM608 PRO kit contents:
- Autel MaxiIM IM608
- XP400 Key Programmer
- Protective case
- Main cable
- Cigarette lighter cable
- Mini USB cable
- 6*30mm light fuse (2 pieces)
- MaxiFlash JVCI
- AC/DC power supply (12V)
- User manual
- USB cable
- APA107 (Connection cable)
- APA105 (MCU clamp)
- APA103 (EEPROM clamp)
- APA002 (EEPROM socket)
- APB107 (MCU_FQFP144)
- APB105 (MCU_FQFP80)
- APB102 (Infrared cable MB)
- APC101 (USB cable)
- APA106 (MC9S12 clamp)
- APA104 (ECU clamp)
- APA101 (Single cable)
- APB108 (MCU_FQFP176)
- APB106 (MCU_FQFP112)
- APB104 (MCU_FQFP64)
- APB101 + APD101 (EEPROM adapter + EEPROM)
- AAC001 (MED17 cable)
List of supported brands: HERE
Product Model: IM608 (IMMO)
